Description

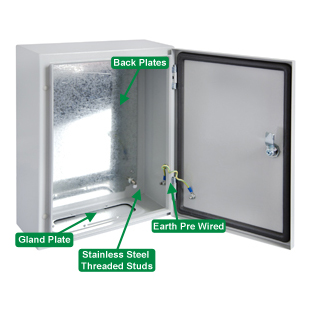

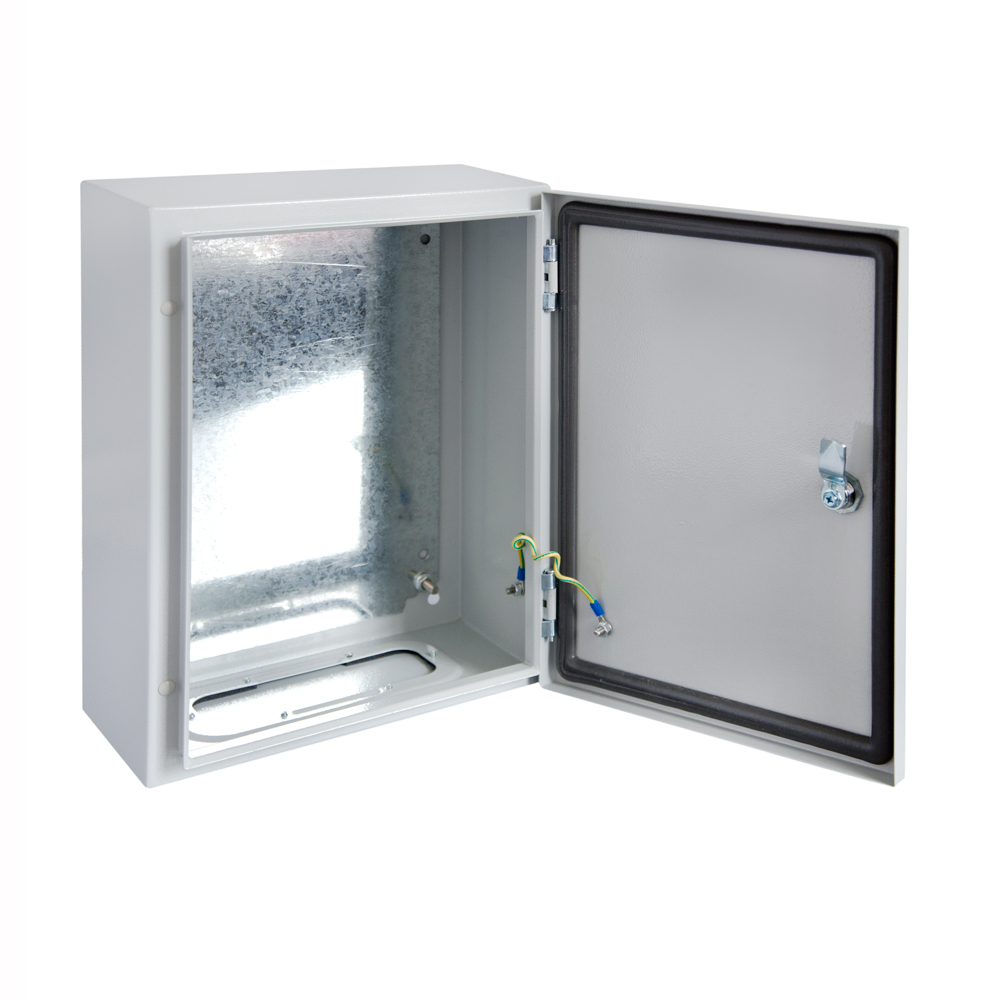

IP66, IK10 Lockable Galvanised steel enclosure 300x200x130 with galvanised wall mounting brackets. Power coated galvanised Grey (RAL 7035) steel housing and galvanised back plate guaranteed for 3 years against corrosion.
Galvanised steel housing guaranteed for 3 years against corrosion
2mm Galvanised steel back plate guaranteed for 3 years against corrosion
Gland plate with IP66 sealing gasket for top or base mounting.
Supplied c/w galvanised WALL MOUNTING BRACKETS
Powder coated in Grey RAL7035
All threaded studs are stainless steel thus fully corrosion proof
All with Earth stud pre wired door to housing
Compliance to IEC 60529
SPECIFICATION
Product Type Solid door enclosures
Door Style Solid
Enclosure Material Steel
IP Rating 66
Max Temperature Rating °C 55
Height (mm) 300
Width (mm) 200
Depth (mm) 130
Gland Plate (mm) 168×95
Mounting Plate (mm) 265×150
Number of Locks 1
