Description

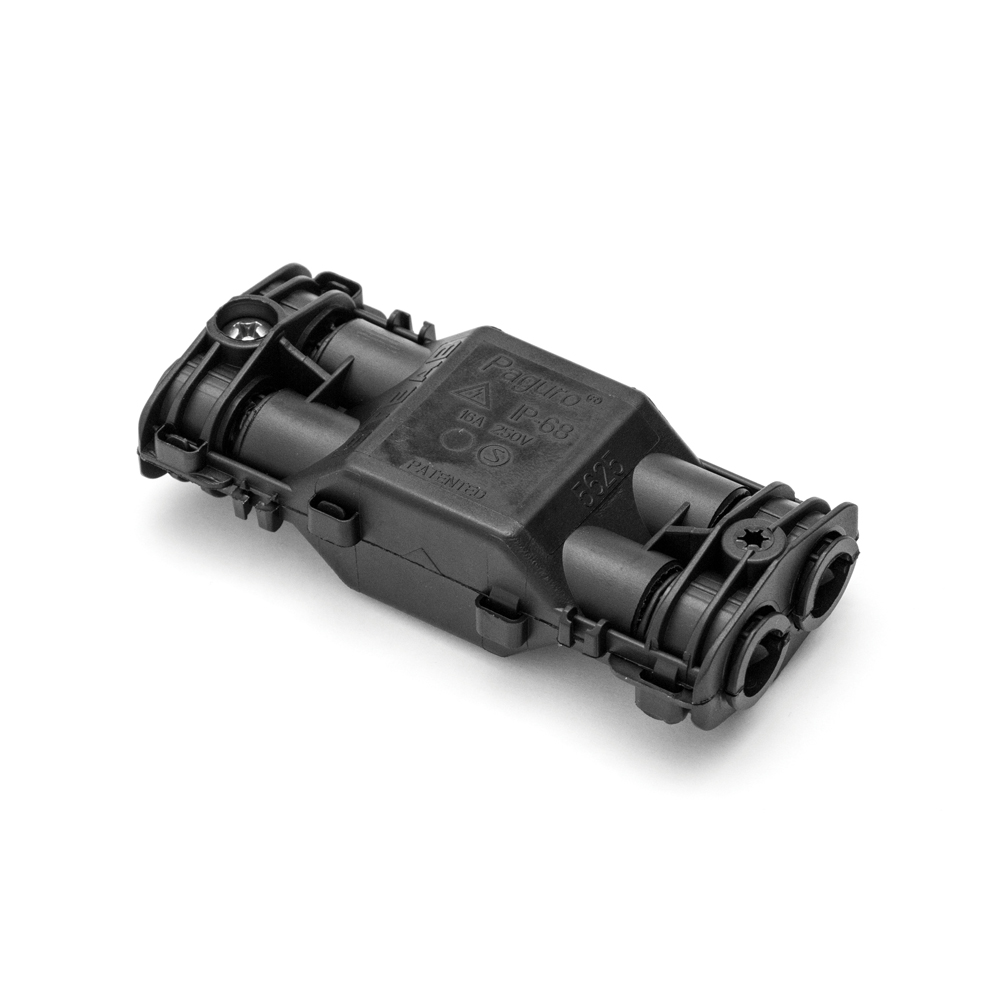

Paguro gel connector junction box black, 4 cable entry 6.5-12mm cable with 3 pole terminal block
Patented memory Gel
Can be rewired without renewal of internal Gel
IP68 Protection as standard
Supplied complete with connector
Ideal for external connection applications
The products can be buried without moisture ingress problems
Up to 16 Amp current capability, depending on product
SPECIFICATION
Cable Entries – 4
Number of Poles – 3
Terminal Type Screw – wp
Body Material Nylon PA66-RV V0
IP Rating – 68
Max Conductor Size (Sq mm) – 4
Max Current (A) – 16
Max Voltage (V) – 250
Min Temperature Rating °C -30
Max Temperature Rating °C 130
Minimum Cable Diameter (mm) 6.5
Maximum Cable Diameter (mm) 12
