Description

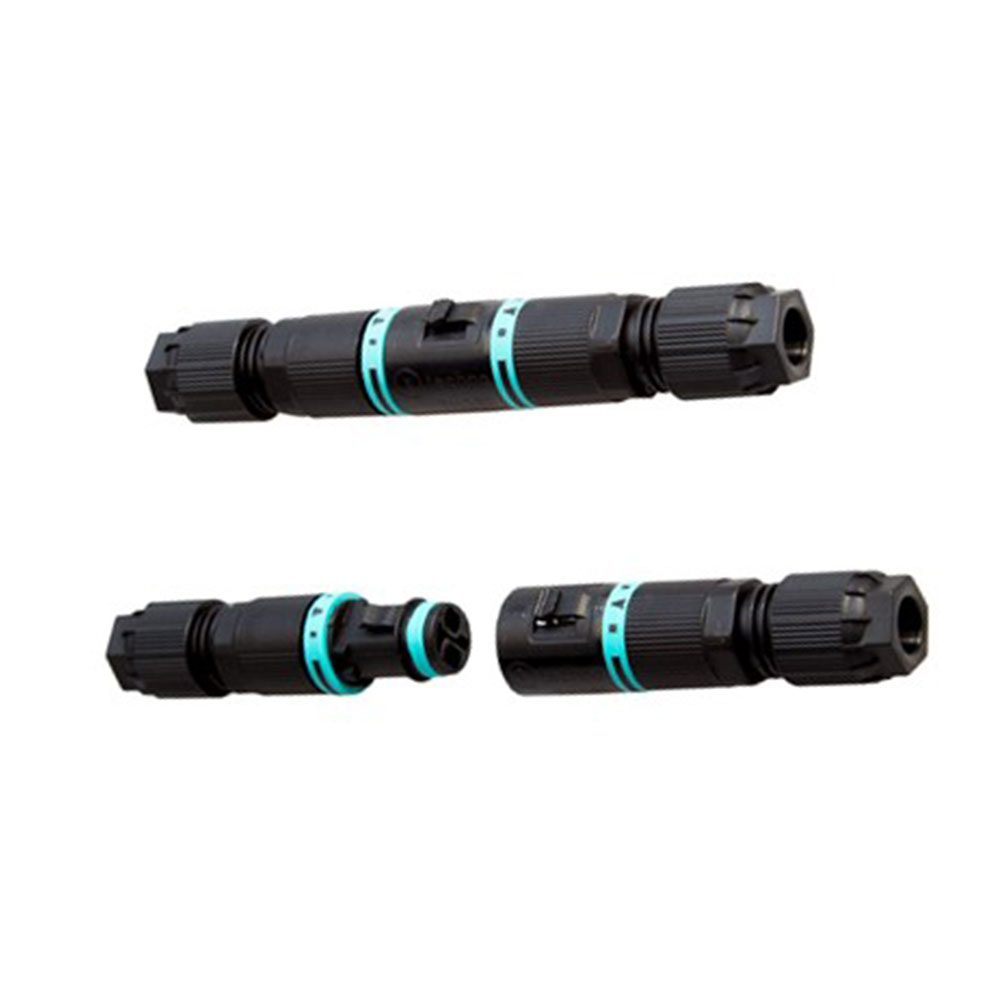

Micro Plug 3 pole Screw terminal 5.8mm to 6.9mm cable diameter, IP68 10A 400V 1 cable entry and Micro Socket 3 pole Screw terminal 5.8mm to 6.9mm cable diameter, IP68 10A 400V 1 cable entry
Miniaturization – a diameter of only 14mm (3 poles)
Screw connection for field wiring (M2 screws – max 0.2 Nm) and versatility guaranteed during installation
Available with overmolded cable
Tested and approved to resist dust and water (IP68 30m/1h) and high pressure water (IP69K)
Suitable For Class 2 Applications (Double Insulated) Max. 250V AC.
Terminal Type Silver-plated brass (zinc-plated screws)
Type Plug & Socket
Cable Entries 1
Max Current (A) 10
Max Voltage (V) 400
Number of Poles 3
Minimum Cable Diameter (mm) 5.8
Maximum Cable Diameter (mm) 8
IP Rating 68
Min Temperature Rating °C -40
Max Temperature Rating °C 125
Body Material PA66 GF UL94 V0
