Description

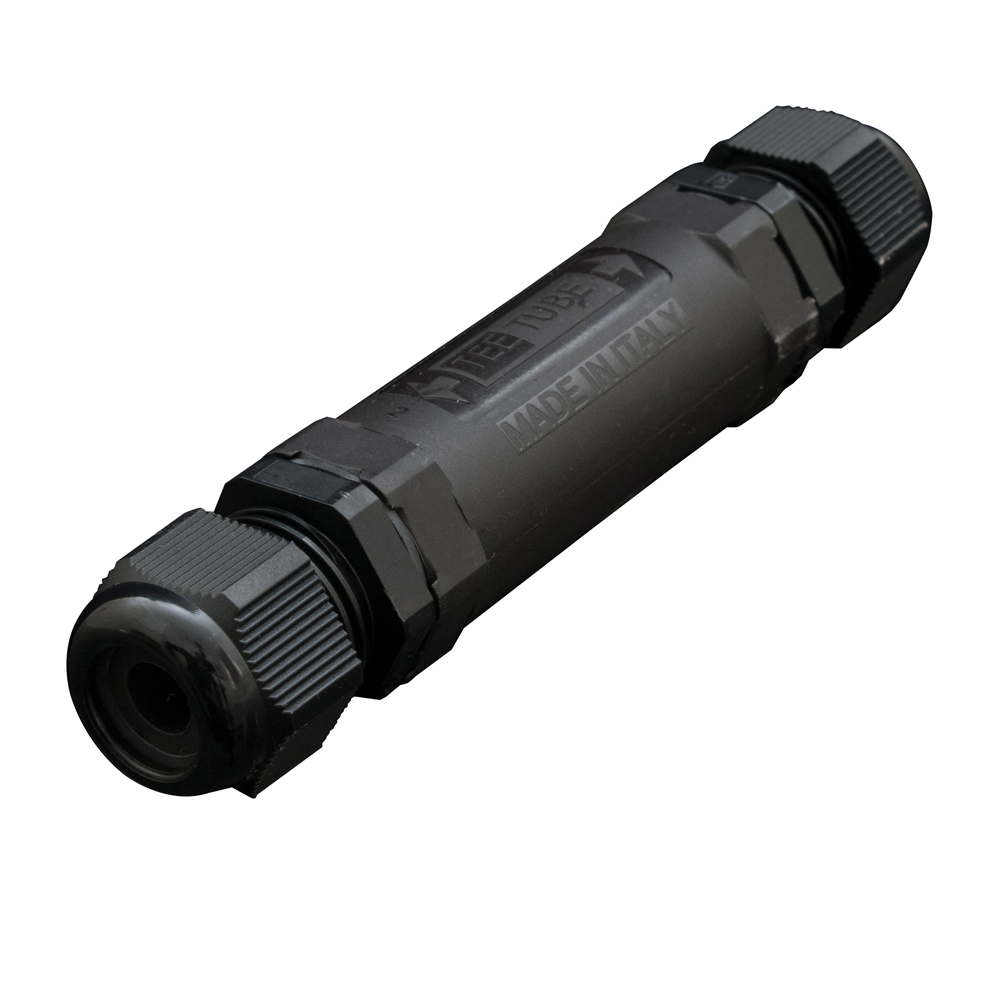

TeeTube In-line 3 Pole Screw – end barrier contact 5mm to 13mm, 4 mm max conducter size IP68 32A 450V 2 cable entries
TEETUBE RANGE FEATURES
Tough, robust construction with large cable range acceptance
Dual terminal versions available for easy fitting and looping of conductors (2+2 and 3+3 poles)
Temperature rating of –40°C to +125°C
SPECIFICATION
Cable Entries 2
Number of Poles 3
Terminal Type Screw – end barrier contact
Body Material PA66 / TPE
IP Rating 68
Max Conductor Size (Sq mm) 4
Max Current (A) 32
Max Voltage (V) 450
Min Temperature Rating °C -40
Max Temperature Rating °C 125
Minimum Cable Diameter (mm) 5
Maximum Cable Diameter (mm) 13
