Description

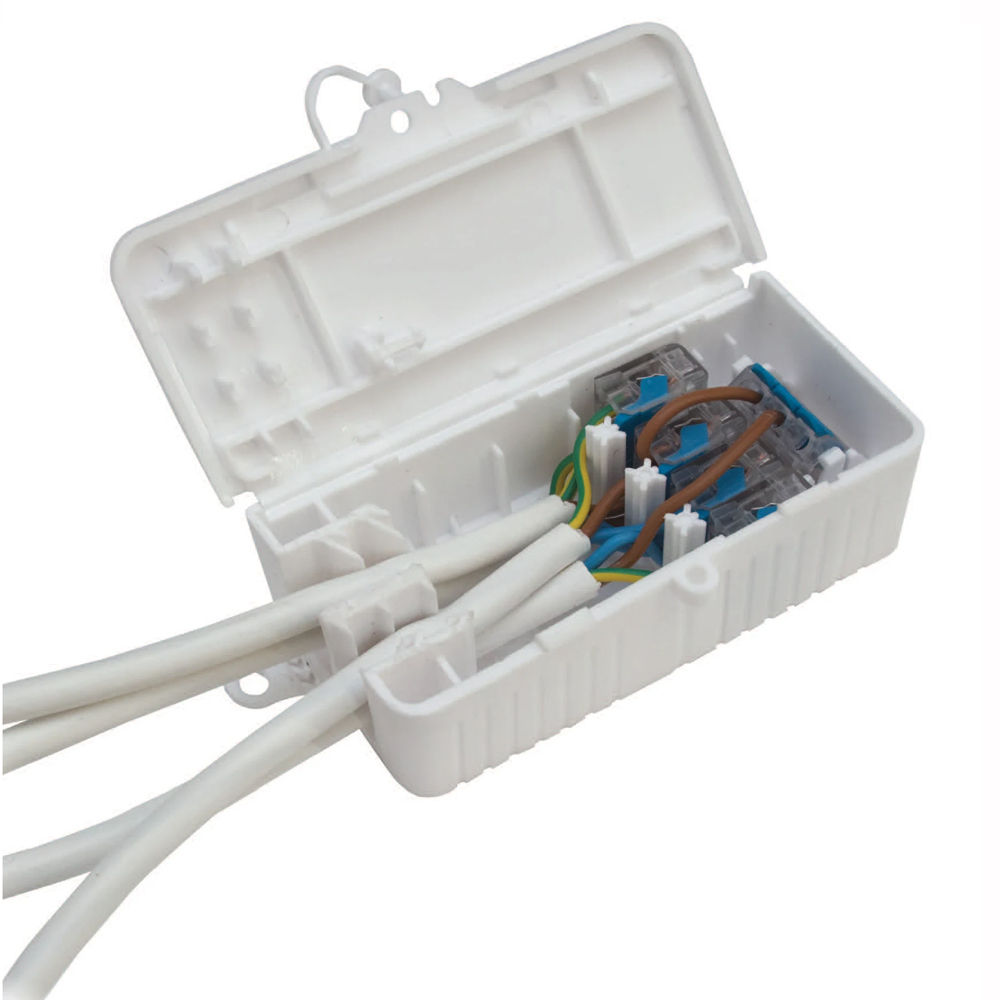

Debox SL2 is the smallest junction box with five poles on the market and the only product supplied complete with 5 screwless terminals: each individual 32A lever connector can take up to three conductors. Debox SL2 saves valuable time and makes installation easier for smaller and larger internal wiring jobs, as everything needed is supplied with the box and there is no need to use a screwdriver to securely join wires and mount the box itself.
FEATURES
Saves Time & Money
Maintenance Free – 100% Tool-less Box and Assembly.
Supplied with 5×3 Pole 32 amp Connectors
Smallest Junction Box with Five Poles
EN60598-1 (Glow Wire Test 650°C)
Flame Retardant to UL94V-0 Housing
Complete with 2 Locking Clips (one spare)
External Fixing Lugs
Maintenance Free
Unique built in double Cable Strain Relief
SPECIFICATION
Number of Poles – 5
Body Material – Polypropylene
Colour – White
Min Conductor Size (Sq mm) – 0.25
Max Conductor Size (Sq mm) – 4.0
Max Current (A) – 32
Height (mm) – 35
Width (mm) – 47
Length (mm) – 107
Min Temperature Rating °C – 20
Max Temperature Rating °C – 85
