Description

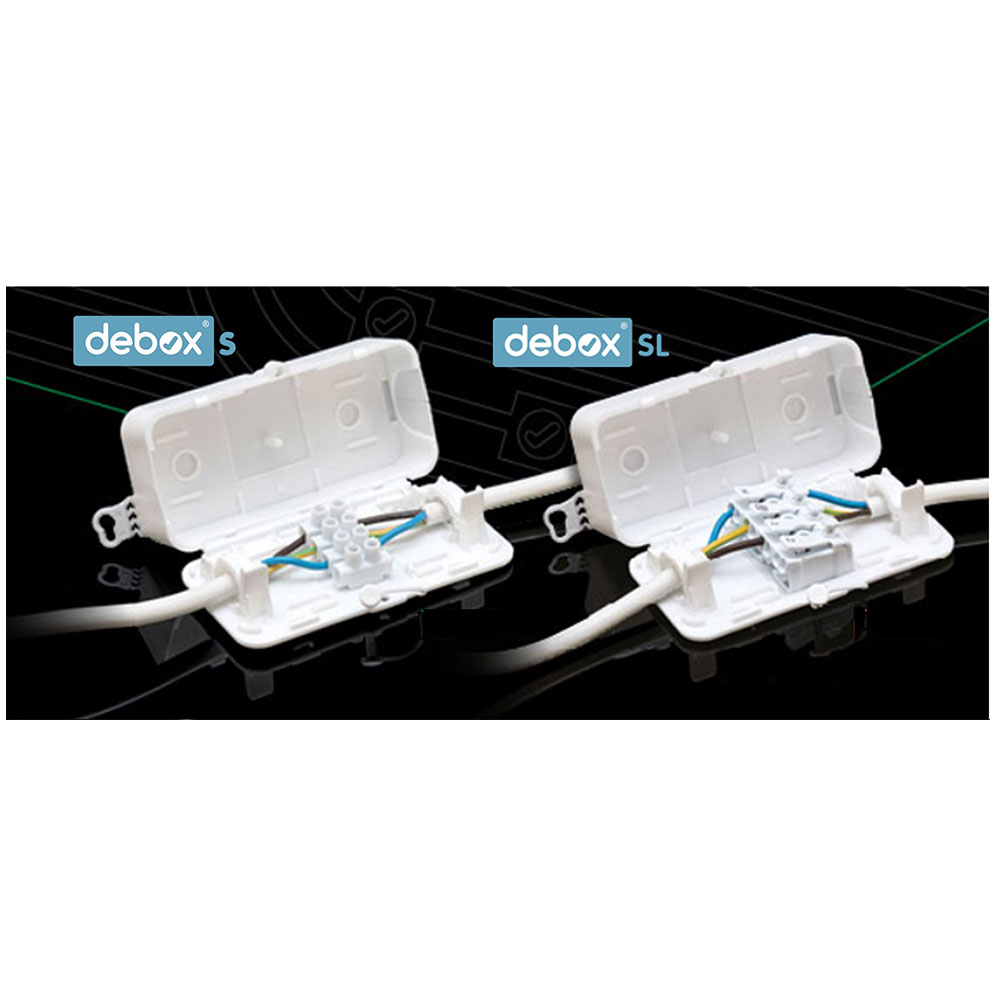

DEBOX® SL supplied with Screwless Terminal Block – This maintenance free cable junction box is a registered design, featuring many new innovative concepts to speed up product assembly without compromising quality. This safe, fast reliable 100% tool-less assembly is also supplied complete with 4 Pole 16amp, 0.5-2.5mm connector block. It is capable of accommodating 2, 3 and 4 conductors in round or flat profile cable for ring main lighting. LED lighting or power.
FEATURES
100% tool-less assembly saving time and money
Maintenance free
Supplied complete with UL and VDE 16A 4 Pole Screwless Terminal Block with Multi Conductor access on input and output (2 x 1.5mm²)
Manufactured from Polypropylene material, Flame Retardant UL94 V0
External Fixing Lugs
Spare Butterfly Clip included
IP20 Protected
Conforms to EN60598-1 (Glow wire test 650°C) and EN60670-22 (Pull Test)
SPECIFICATION
Number of Poles 4
Body Material Polypropylene
Colour White
Min Conductor Size (Sq mm) 0.5
Max Conductor Size (Sq mm) 2.5
Max Current (A) 16
Height (mm) 28.5
Width (mm) 50
Length (mm) 97
Min Temperature Rating °C 20
Max Temperature Rating °C 85
