Product Description

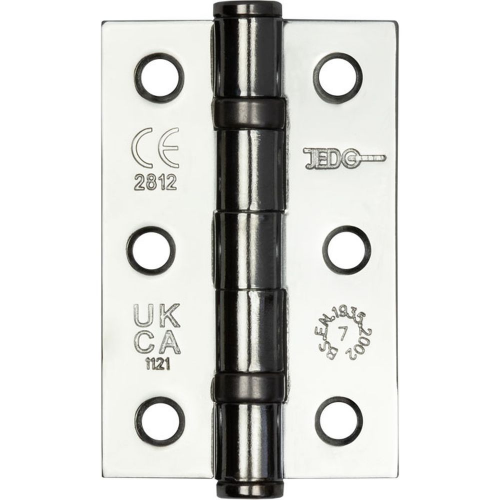

The Frelan Grade 7 Ball Bearing Hinge is a heavy-duty hinge designed for high-traffic internal doors. Measuring 76mm x 50mm x 2mm and finished in polished chrome, it features integrated ball bearings for smooth operation and long-term durability. Ideal for residential and commercial settings, it supports FD30 fire-rated doors and complies with BS EN 1935 standards
Product Specification
– Type: Ball Bearing Hinge
– Size: 76mm x 50mm x 2mm
– Finish: Polished Chrome
– Material: Steel
– Grade: 7 (supports doors up to 40kg with 3 hinges)
– Certification: UKCA 1121 / CE 2812
– Fire Rating: FD30
– Mechanical Cycles: 200,000
– Pack Quantity: 1
Additional Features
– Smooth operation via integrated ball bearings
– Supplied with 12 x wood screws (4mm x 22mm)
– Suitable for internal residential and commercial doors
– Complies with BS EN 1935 for durability and safety
– Ideal for frequent-use environments requiring reliability
