Description
Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
Patented routing principle unique to hand-held machines for accurate work with no kickbacks
Stops that are quick and easy to adjust, for accurate results
Rotation-proof joint with DOMINO dowels providing maximum stability
System accessories compatible with both DOMINO jointers
Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
Main applications:
Furniture manufacture
Shopfitting/Interior fitting
Window construction
Exhibition stand construction
For panel joins
For frame and rack joints
Power consumption – 420 W
Idle engine speed – 25 500 min⁻¹
Depth stop for routing depth – 12, 15, 20, 25, 28 mm
Max. routing depth – 28.00 mm
DOMINO slot cutter dia. – 4, 5, 6, 8, 10 mm
Routing height adjustment – 5 – 30 mm
Mitre routing – 0 – 90 °
Dust extraction connection dia. – 27 mm
Weight – 3.20 kg
Drive type – Mains

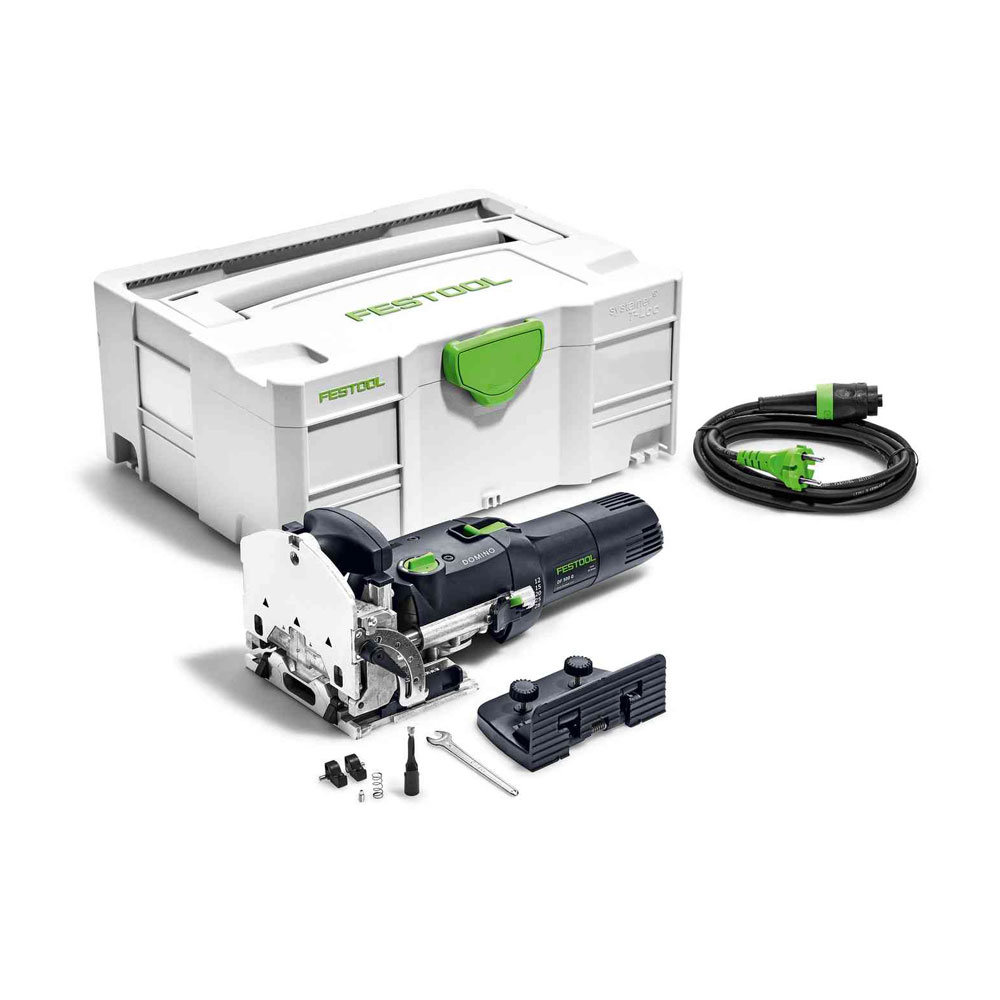

Items included
DOMINO cutter D5
Additional stop
open ended spanner, WAF 8
Systainer SYS 2 T-LOC
