Description

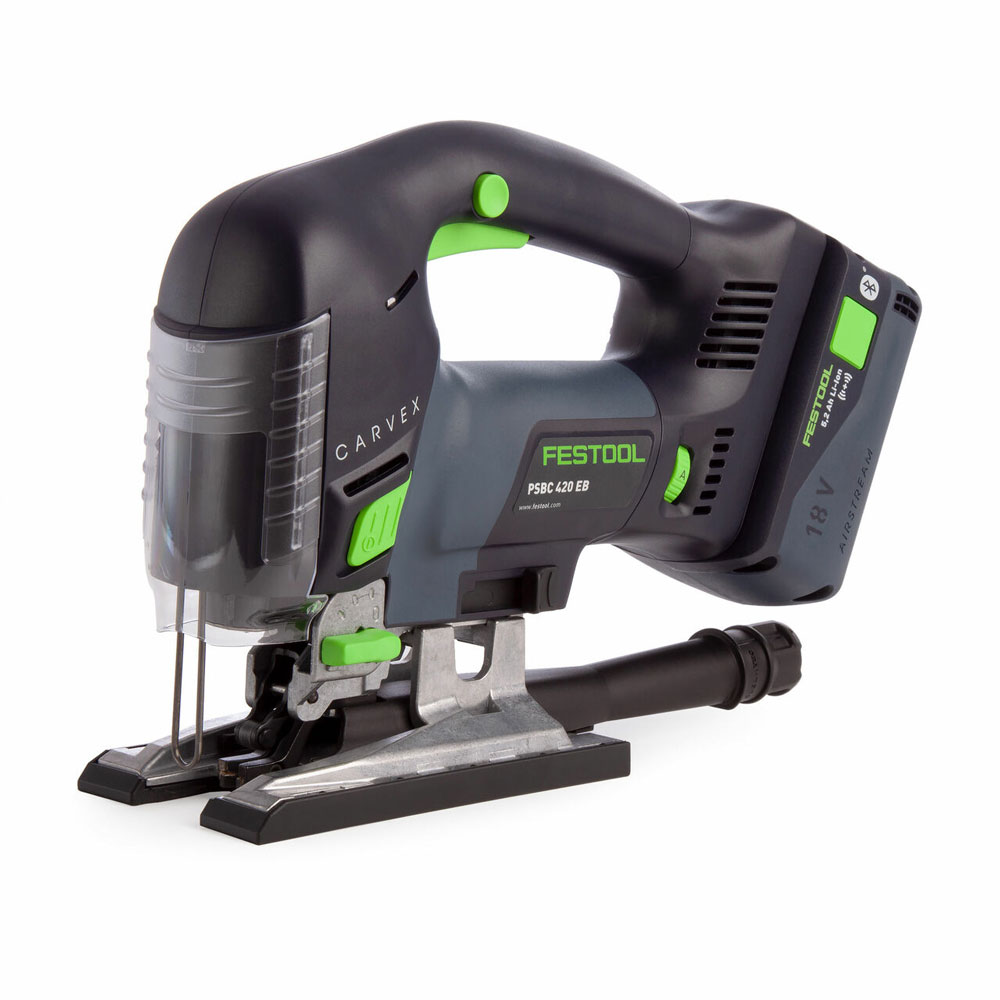

The Festool 575680 pendulum jigsaw is the cordless D-handle version of the CARVEX. It performs excellently on curves thanks to the threefold saw blade guide and rigid lifter rod. It has an electronic switch-on/off on both sides which is reachable in every grip position. The high-performance, energy-efficient EC-TEC motor gives you powerful, fast sawing progress every time while consuming extremely low amounts of energy. It features easily visible scribe marks through stroboscope light and powerful extraction and is lightweight, handy and has a powerful cutting stroke for rapid working progress.
Features:
Simple handling thanks to the soft grip and ergonomic design
Fast, tool-free changing of tables, baseplates and saw blades
Convenient dust extraction: The battery pack communicates via Bluetooth with the Bluetooth module of the CLEANTEC mobile dust extractor and starts the mobile dust extractor automatically when the CARVEX is switched on
Low weight to save energy: 2.4 kg
Strengths and benefits:
Strong traction and triple saw blade guide for excellent curve handling
Convenient and safe – SoftGrip prevents slipping and the splinter guard minimises laborious reworking
FastFix – makes changing routing, sawing, planing, sanding, drilling and screw driving tools easier
Processor controlled “Multi-Material Control” power electronics provide adjustable and constant speeds as well as temperature monitoring for work on all types of material
Main areas of use:
Cut-outs for sinks and kitchen hobs
Trimming work on furniture, kitchens, for interior fitting
Cutting circles and curves
Coping end strips
Cutting workpieces to length
Edge notching on beams
Cutting from below
Comes with:
2 x saw blade
Splinter guard
BP 18 Li 5.2 ASI battery pack
Rapid charger TCL 6
SYSTAINER SYS 2 T-LOC
Specification:
Battery voltage: 18 V
Stroke rate: 1 000 – 3 800 min⁻¹
Pendulum cover adjustment in stages: 4.00
Cutting depth in wood: 120.00 mm
Cutting depth in NF metals: 20.00 mm
Cutting depth in steel (soft): 10.00 mm
Li-ion battery capacity: 5.20 Ah
Weight with Li-ion: 2.40 kg
Sawing chipboard: Uncertainty (vibration)K: 2.00 m/s²
Sawing chipboard: A-weighted sound power level, LWA: 99.00 dB(A)
A-weighted sound pressure level, LpA: 88.00 dB(A)
Sawing chipboard: Total vibration average, Ah: 10.00 m/s²
Sawing chipboard: Uncertainty (noise) K: 3.00 dB
