Description

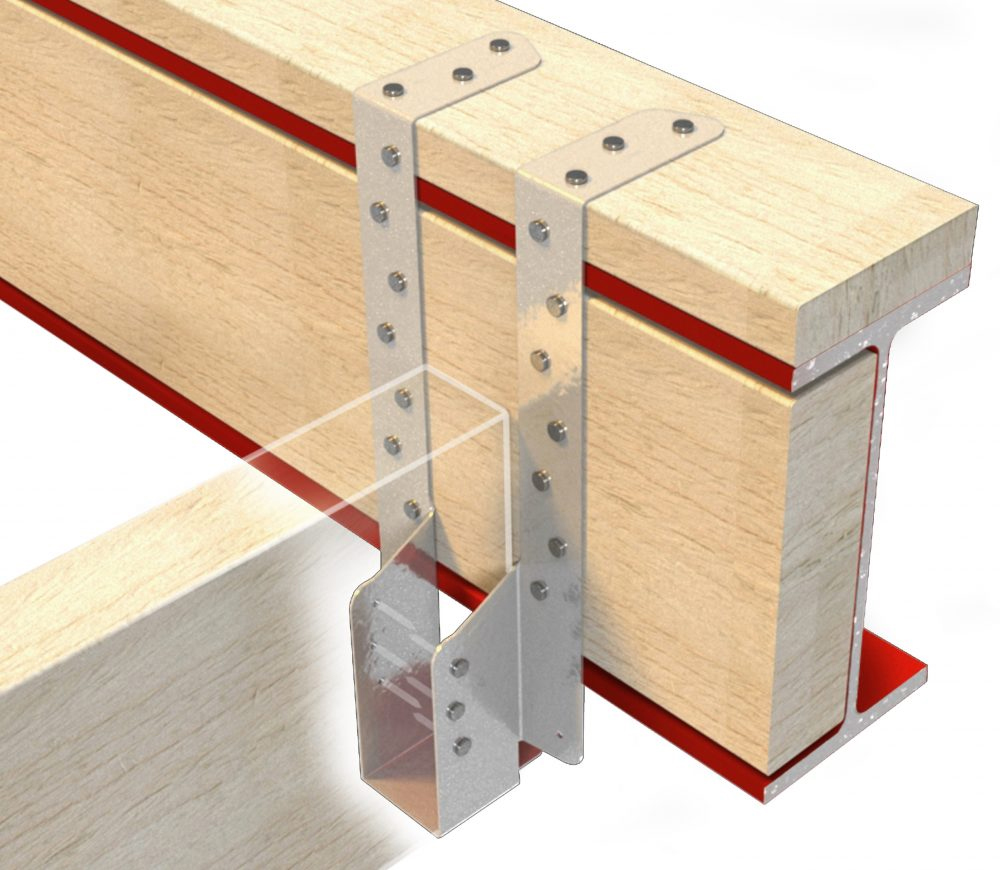

Adjustable fixing straps to suit multiple joist depths
Can be underslung by up to 100mm
275G/M2 gavanized coating
Material – Galvanized Mild Steel DX51D+Z275 to EN10346:2015
Coating/Finish/Colour – 275g/m² Zinc Coating
Length 1/Projection – 50mm Shoe
Length 2/height – 377mm
Width/Wing Length – 75mm Joist Width
Plaster/Render/Joist depth – Max joist height 225mm
Material Gauge – 1.5mm
Individual Weight (kg) – 0.467
Declared Loadbearing Capacity – 7.6kN (ULS) 6.7kN (Underslung)
Fire Rating – Euroclass A1
Fixing Hole Dimensions – 3.8mm
Fixing Type – 3.75 x 30mm Square Twisted Sherardized/Galvanised Nails
Installation requirement 1 – Fix using all nail holes to achieve stated loads.
Installation requirement 2 – Ensure hanger is the correct size for joist. Any slack to be packed.
Installation requirement 3 – Joists are to be cut square with a gap not exceeding 6mm from the rear of the hanger.
Installation requirement 4 – Straps must be folded over supporting timber and fixed with holes provided. Do not shorten or modify straps.
Installation requirement 5 – Ensure floor has suitable noggins/strutting as required before applying load.
