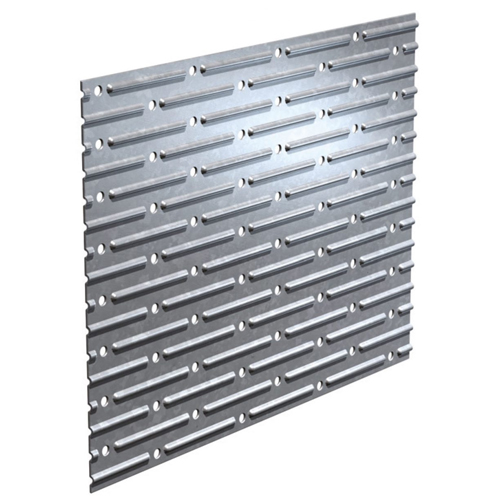

Description
275G/M2 gavanized coating
Used on both sides of the joint to prevent eccentric loading
375 x 30mm square twisted sherardized/galvanised nails
Material – Galvanized Mild Steel DX51D+Z275 to EN10346:2015
Coating/Finish/Colour – 275g/m² Zinc Coating
Length 1/Projection – 76mm
Width/Wing Length – 51mm
Material Gauge – 0.9mm
Individual Weight (kg) – 0.0268
Declared Loadbearing Capacity – 345N/Nail (SLS – parallel to grain) 145N/Nail (SLS – perpendicular to grain)
Fire Rating – Euroclass A1
Fixing Hole Dimensions – 3.5mm
Fixing Type – 3.75 x 30mm Square Twisted Sherardized/Galvanised Nails
Installation requirement 1 – All nail holes must be filled.
Installation requirement 2 – Nail plates should be used on both sides of the joint to prevent eccentric loading.
Installation requirement 3 – Ensure plate is located cenrally over joint
