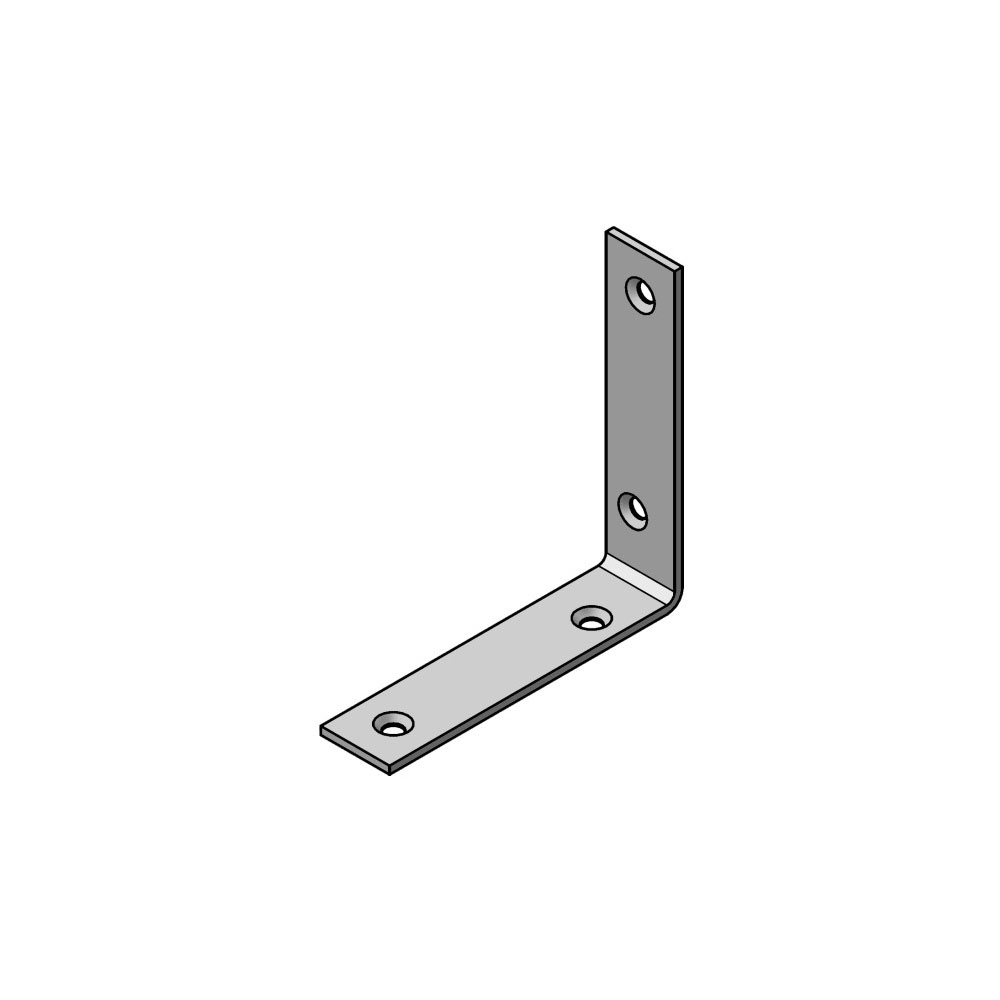

Description
Material – Galvanized Mild Steel
Coating/Finish/Colour – 275g/m² Zinc Coating
Length 1/Projection – 60mm
Length 2/height – 100mm
Width/Wing Length – 60mm
Material Gauge – 2.0mm
Individual Weight (kg) – 0.17
Declared Loadbearing Capacity – Per Pair: F1 Uplift (ULS) 2.37kN
Fire Rating – Euroclass A1
Fixing Hole Dimensions – 5mm (20) 11mm (3)
Fixing Type – Use 4.0×40 Annular Ring Shank Nails to achieve stated loads, otherwise as suitable for substrate and hole size
Installation requirement 1 – Brackets must be used in pairs to prevent eccentric loading
