Description

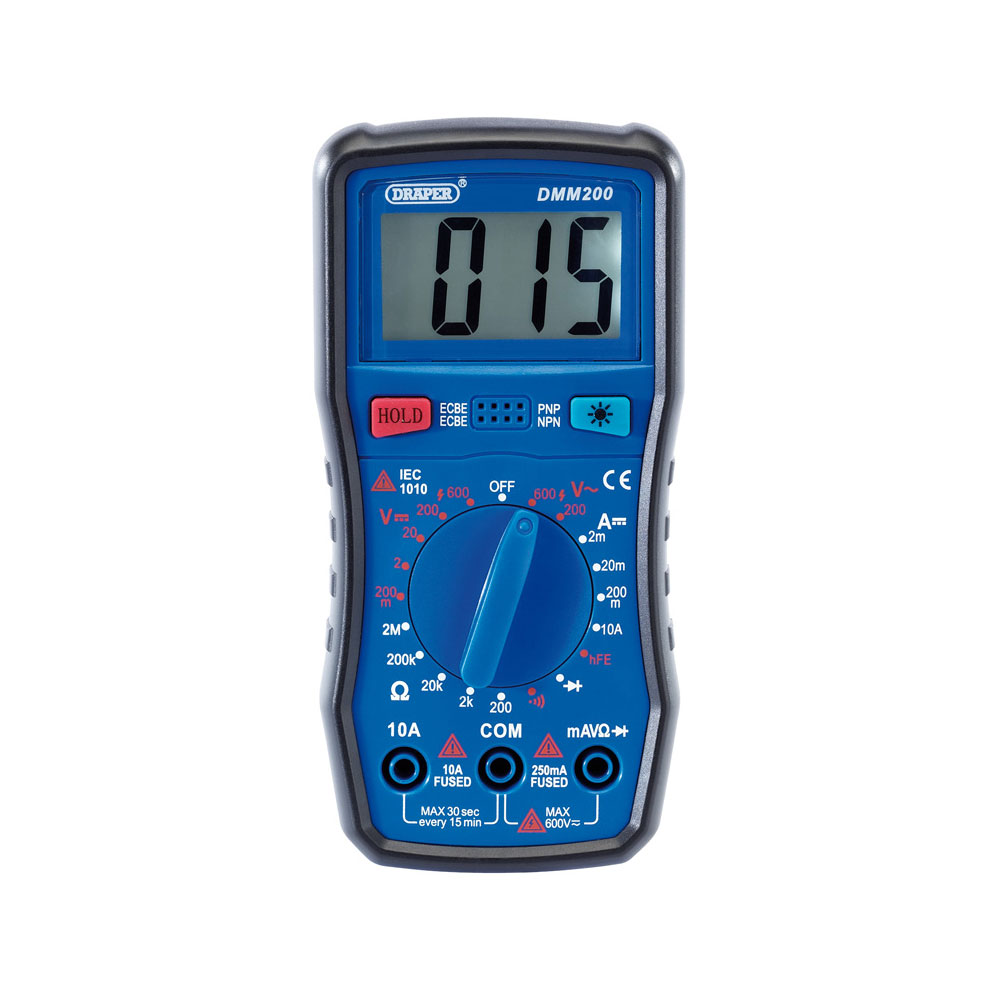

Manual ranging capable of voltage, current, hEF and resistance testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads and 1 x 6F22 9V battery.
Manual ranging capable of voltage, current, hEF and resistance testing
Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features
Supplied with test leads and 1 x 6F22 9V battery
Specifications
AC Current – N/A
AC Voltage – 200V/600V
Automatic Power Off – Yes
Battery – 6F22 9V
Capacitance – N/A
DC Amps – 2mA/20mA/200mA/10A
DC Current – 2mA/20mA/200mA/10A
DC Voltage – 200mV/2V/20V/200V/600V
Diode on/off Test – Yes
Dimensions – 150mm x 74mm x 43mm
Duty Ratio – Yes
Resistance (Ohms) – 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
Symbol Unit Data Hold – Yes
Temperature Range – -20°C – 1000°C
Weight – 233g (approx.)
