Description

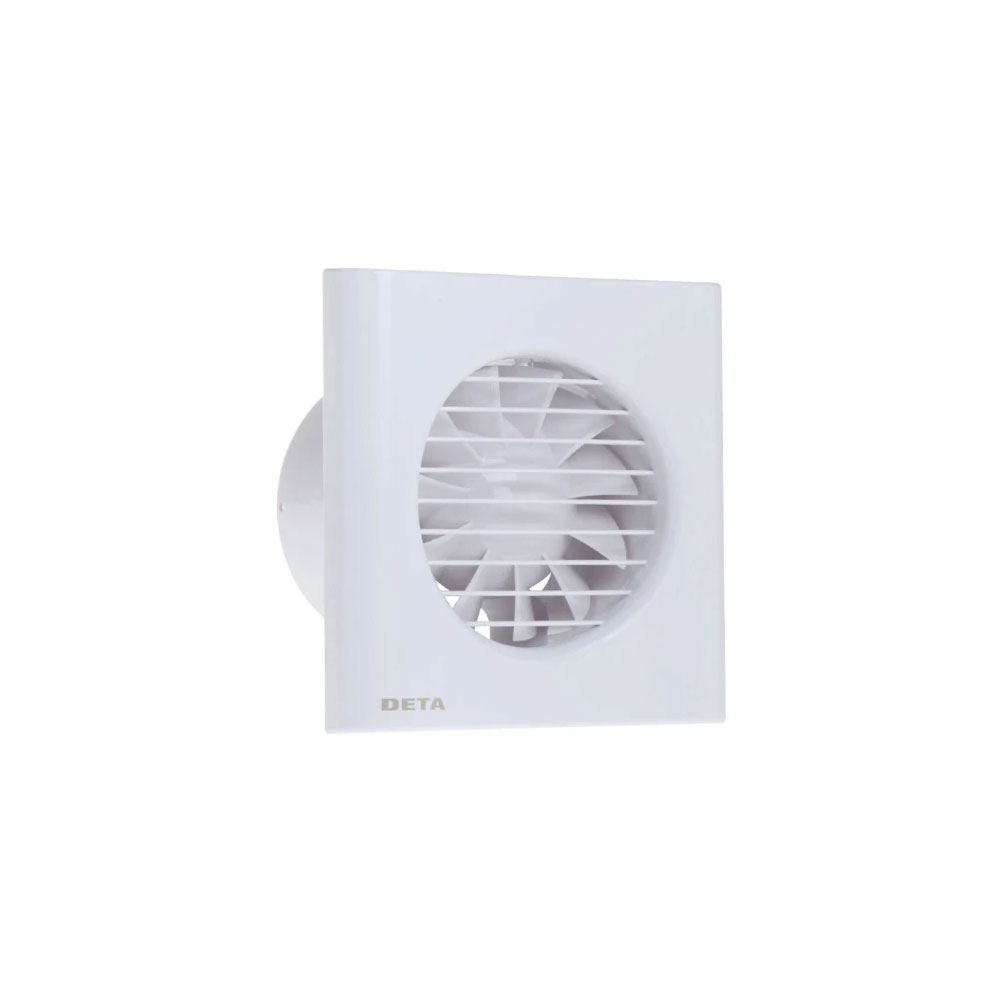

Stylish 4” (100mm) axial extractor fan with curved design front cover. An extremely quiet and efficient fan, providing excellent low energy and low noise performance. Ideal for modern bathrooms and toilets. Easy to install and suitable for wall or ceiling mounting. This model is for operation with the room light switch. When the light is switched on the fan comes on, when the light is switched off the fan continues to run for a pre-set time. Requires permanent live, switched live and neutral (3 wires excluding earth) at the fan position in order to operate correctly. Please note that the timer function cannot be used unless you have these three wires to connect.
Mains voltage 230/240V AC 50Hz
8 watts power consumption
25 litres per second, 90 cubic metres per hour extraction rate
Sound output 29dB(A) @ 3m
Timer adjustable between 2 and 30 minutes
IP24 rated – suitable for use in zone 2 if circuit protected by RCD
Backdraught strips
Manufactured to BS EN 60335-2-80
CE approved
Dimensions: 152mm wide x 152mm tall x 20mm deep (beyond installed surface). 99mm diameter spigot, extends for 80mm
