Description

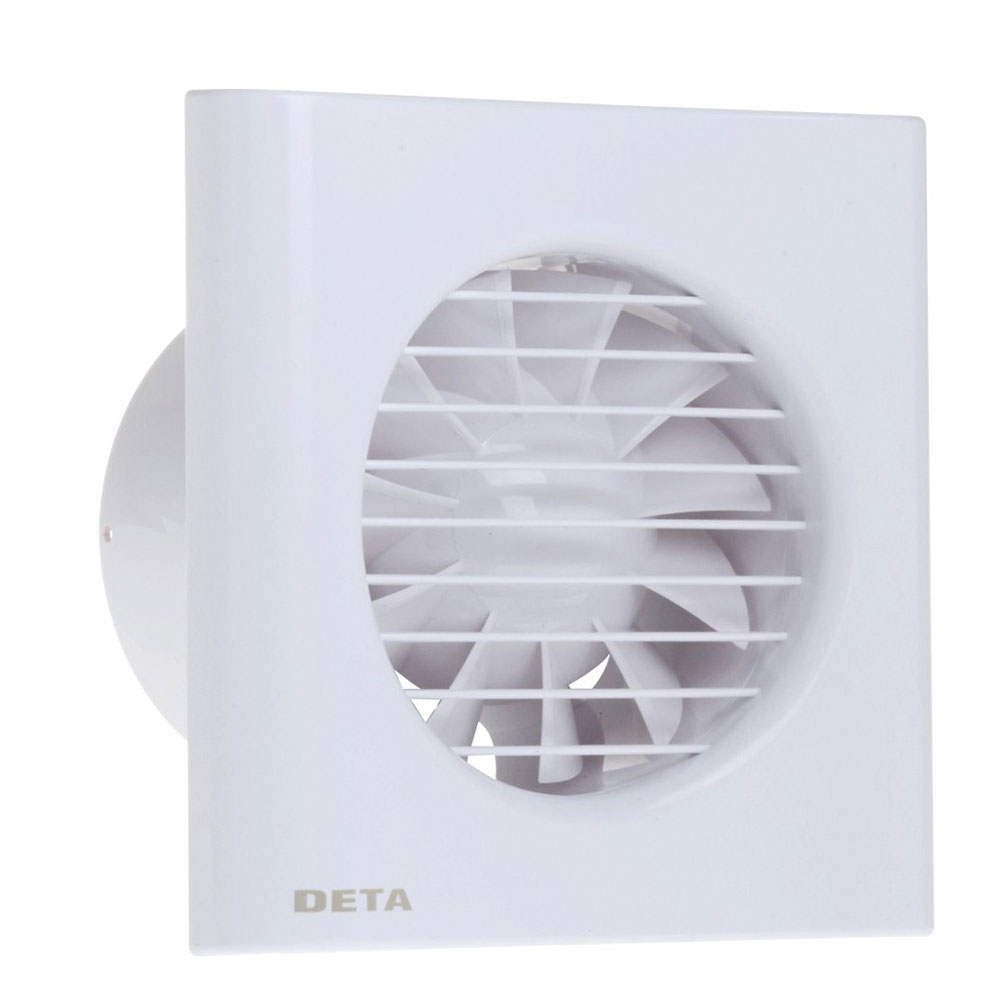

Stylish 4” (100mm) axial extractor fan with curved design front cover. An extremely quiet and efficient fan, providing excellent low energy and low noise performance. Ideal for modern bathrooms and toilets. Easy to install and suitable for wall or ceiling mounting. This model is for simple switching on / off from a separate switch, e.g. a light switch or spur unit (not included). It does NOT have an over-run timer. Live and Neutral (2 wires, excluding earth) connections.
Mains voltage 230/240V AC 50Hz
8 watts power consumption
25 litres per second, 90 cubic metres per hour extraction rate
Sound output 29dB(A) @ 3m
IP24 rated – suitable for use in zone 2 if circuit protected by RCD
Backdraught strips
Manufactured to BS EN 60335-2-80
CE approved
Dimensions: 152mm wide x 152mm tall x 20mm deep (beyond installed surface). 99mm diameter spigot, extends for 80mm
