Description

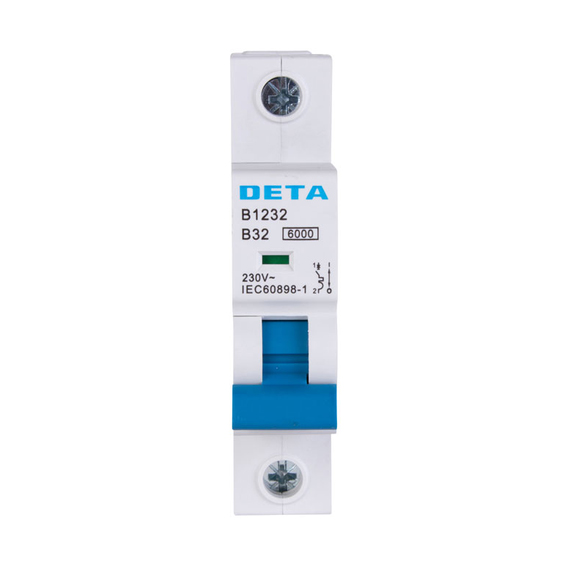

A wide range of MCB’s for use with DETA consumer units and are ideal for the domestic new build installations as well as replacing existing units.
Features
• Supplied with contact position indicator
• 35mm DIN rail mounting
• Terminal have automatic blanking plate,
preventing incorrect termination
• MCBs can be removed without
removing the busbar
• Protection against both overload and
short circuits
• 6000A short circuit breaking capacity
Technical Specification
Voltage – 230V ac
Terminal Capacity – 25mm2 max.
Short Circuit Breaking Capacity – 6kA
RoHS – Compliant
Terminal Tightening Torque – 2.5 Nm min.
Standards – IEC 60898-1
